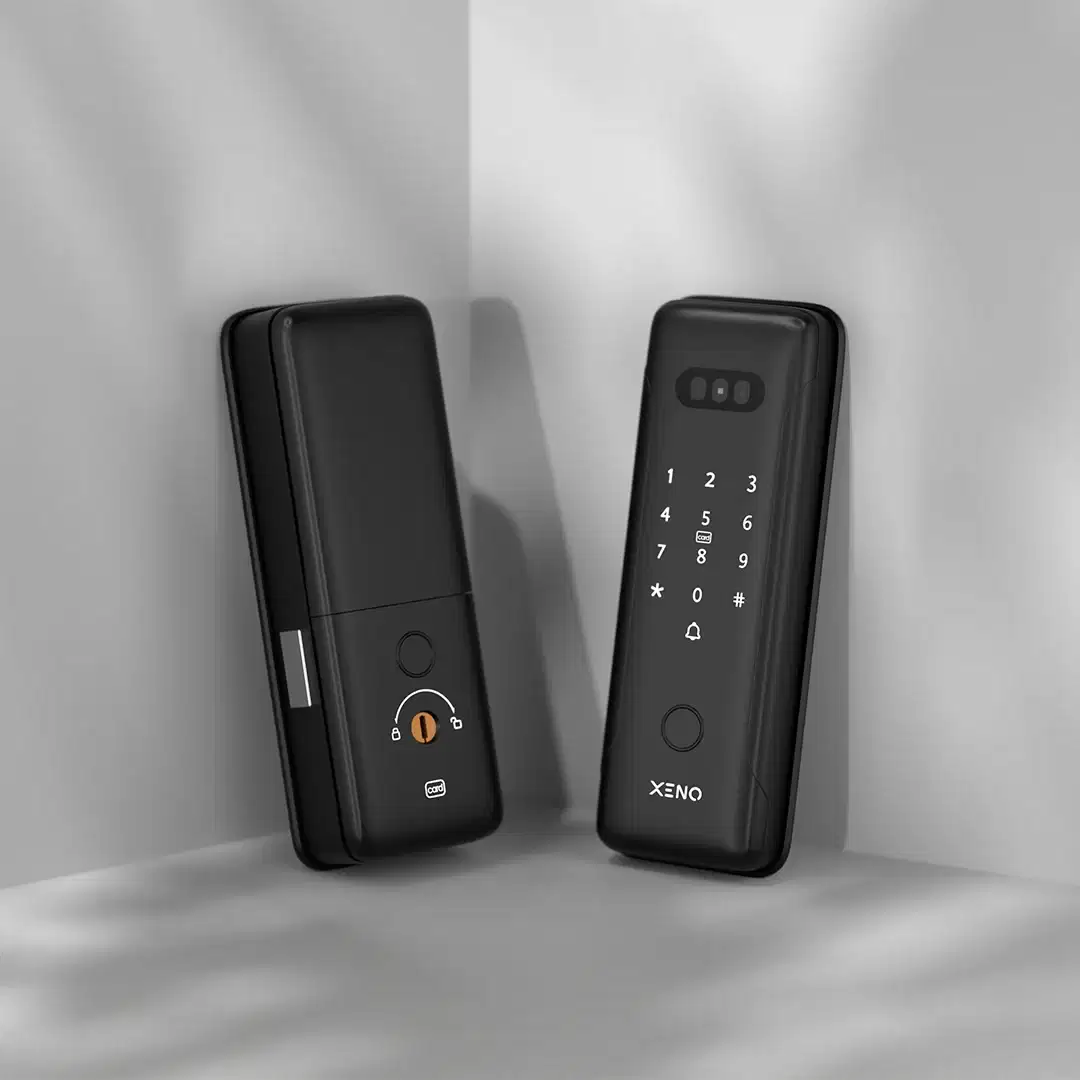

X Gate Lock


Specification​

Front Panel (mm):

22 (D) x 77.5 (W) × 217 (H) mm

Back Panel (mm):

43 (D) x 77.5 (W) x 217 (H) mm

Mortise Type

Mechatronic Fully Automatic Rotating Latch Mortise

Door Thickness (mm):

40- 110

Facial Recognition Supported Height Range (cm):

130- 200

Unlocking Method

Front Side: Face Recognition, Fingerprint, PIN Code, RFID Card, Mobile APP, Synchronise Unlock
Back Side: Fingerprint, RFID Card, Key, Mobile APP, Remote Controller


Exterior

Material

Aluminium Alloy

Colour

Nano Black

Fingerprint Sensor Type

Semiconductor Fingerprint Sensor

Number Pad

12 Touch Buttons + 1 Doorbell Button


Registration Storage Capacity

Facial Recognition

100 Users

Fingerprint

100 Prints

Password

200 Sets

RFID Card

200 Cards


Unique Features

Alarm Types

Anti Theft Alarm / Low Power Alarm / Multiple Attempt Alarm / Tamper Alarm / Anti Hijacking Alarm

Video Intercom

Yes

Audio Intercom

Yes

Doorbell

Standalone Door Bell

Human Detection

LiDa Technology

Two way synchronization

Unlock from inside or outside — both door and gate will open together automatically.


Electronic Module

Low Battery Alarm

Alarm Triggered when battery drops below 7.2V

Operating Voltage

7.4V

Battery Power Supply

Lithium Battery 4200mAH × 1

Number of Usage Allowable

4-6 Months (10 interaction/Day)

External Emergency Power Supply

Type-C Connection Port

Fingerprint

Semiconductor Fingerprint Sensor

Sensor Resolution: 508 DPI

Fingerprint False Rejection Rate: <3%

Fingerprint False Acceptance Rate: <0.001%

Fingerprint Matching Method: 1:N

Fingerprint Matching Time: ≤0.8s

Password

Numeric Touch Password

Password Length: 6- 10 digits

Fake Password Length: 16 digits

Facial Recognition

IR Camera (200W Megapixels)

Activate Recognition Speed: < 1s

Facial Recognition Optimal Distance: 40- 90cm

False Acceptance Rate (FAR): <0.0001%(1PPM)

False Rejection Rate (FRR): <1%

Remote Control

433 Remote Control

Electrostatic Interference Protection

Yes

RFID Card Chip

BF5823AM48 Integrated

Card Type

ISO/IEC 14443A Type A , M1

Card Reading Distance

0- 5mm, Response Time <1.5S

Video Intercom

Yes, Build-in Camera (Intercom)

Audio Intercom

Yes, Build-in Camera (Intercom)

Camera Parameters

Infrared (IR) FOV: H82°, V66°, D95° Colour FOV: H96°, V77, D115°

Network Connection Method

Wi-Fi 2.4G


Mechanical Module

Main Latch / Slant Bolt

Stainless Steel Material

Top &Bottom Hooks

Fixed Top and Bottom Hooks (Optional)

Mortise Specification

Electromechanical Integrated Fully Automated Flip Latch Lock Body (6068/7068)

Slant Bolt Mechanism

Flip Latch

Main Latch Lateral Static Load

8000N (GA374-2019 GradeB Standard Criteria 6000N)

Main Latch Axial Static Load

6000N (GA374-2019 GradeB Standard Criteria 3000N)

Flip Latch Lateral Static Load

6000N

Emergency Mechanical Lock

Lock Cylinder Mechanism

Electrostatic Interference Protection

Grade IV

Corrosion Resistance

Environmental Adaptability Grade II, Neutral Salt Spray 96H

High and Low Temperature Environment

-25℃- 70℃, Condensation-Free

Operating Humidity

25%RH- 93%RH, Condensation-Free

Anti-Theft Lock Grade

GA374-2019 Electronic Anti-Theft Lock- Grade B


App Feature

Anti Prying Alarm

Yes

Door Opening Record

Yes

Alarm Record

Yes

Temporary Pin

Yes


Execution Standards

GA374-2019 Electronic Anti-Theft Lock- Security Grade B, Environmental Grade II
